precious metal melting furnaces
precious metal melting furnaces
The equipment has less wear and tear, is easy to maintain and has a lower cost. Equipped with platinum-rhodium thermocouple protection, bit can directly measure the furnace temperature and water temperature. With dual temperature control ,it is conducive to b the correct execution of the process.
High Efficiency: Rapid heating with >95% energy efficiency and minimal material loss.
Smart Safety: Real-time monitoring of metal/water temperatures with automatic leakage alarms and emergency stop.
User-Friendly: Highly automated, supports frequent start-stops, and allows for easy material changes.

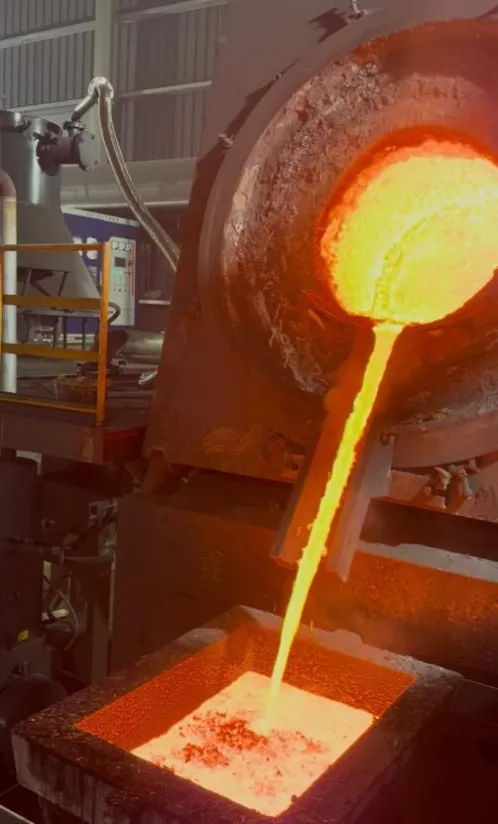

Robust Design: Dual hydraulic tilting for smooth casting and optimized induction coils for maximum power savings.
Green Technology: A clean, low-cost alternative to diesel and gas-fired furnaces, meeting strict environmental standards.
Compact & Durable: Small footprint with low maintenance requirements and high-performance imported insulation.
项目Project 型号Model | 容量KG Capacity | 熔化率KG/H Melting rate | 配置功率KW Configured power | 最高工作温度℃Max operating temperature | 熔化时间H Melting time |
XCJD-100KG | 100 | 100 | 120 | 1800℃ | 1 |
XCJD-300KG | 300 | 300 | 120 | 1800℃ | 1 |
XCJD-500KG | 500 | 400 | 160 | 1800℃ | 1.15 |
XCJD-800KG | 800 | 600 | 200 | 1800℃ | 1.5 |
XCJD-1000KG | 1000 | 750 | 320 | 1800℃ | 1.5 |
XCJD-1500KC | 1500 | 1100 | 450 | 1800℃ | 1.5 |
